A ADDITIONAL EXPERIMENTS

A.1 ADDITIONAL NATURAL LANGUAGE UNDERSTANDING RESULTS

We evaluate the natural language processing capabilities of DREAMLLM post-multimodal adaptation learning via zero-shot experiments on language-only tasks. These included commonsense reasoning (PIQA (Bisk et al., 2020), SIQA (Sap et al., 2019), HellaSwag (Zellers et al., 2019), WinoGrande (Sakaguchi et al., 2021)), reading comprehension (BoolQ (Clark et al., 2019)), and a general multi-task benchmark (MMLU 5-shot (Hendrycks et al., 2021)).

As Table 4 illustrates, DREAMLLM outperforms the Vicuna baseline on most language benchmarks. This suggests that DREAMLLM’s multimodal adaptation does not compromise the language learning model’s (LLM) capabilities. When compared to prior Multimodal Language Learning Models (MLLMs), DREAMLLM demonstrates superior performance, although this may be attributed to the higher baseline results. This finding suggests that a more robust LLM base model could yield improved results.

A.2 ADDITIONAL MULTIMODAL COMPREHENSION RESULTS

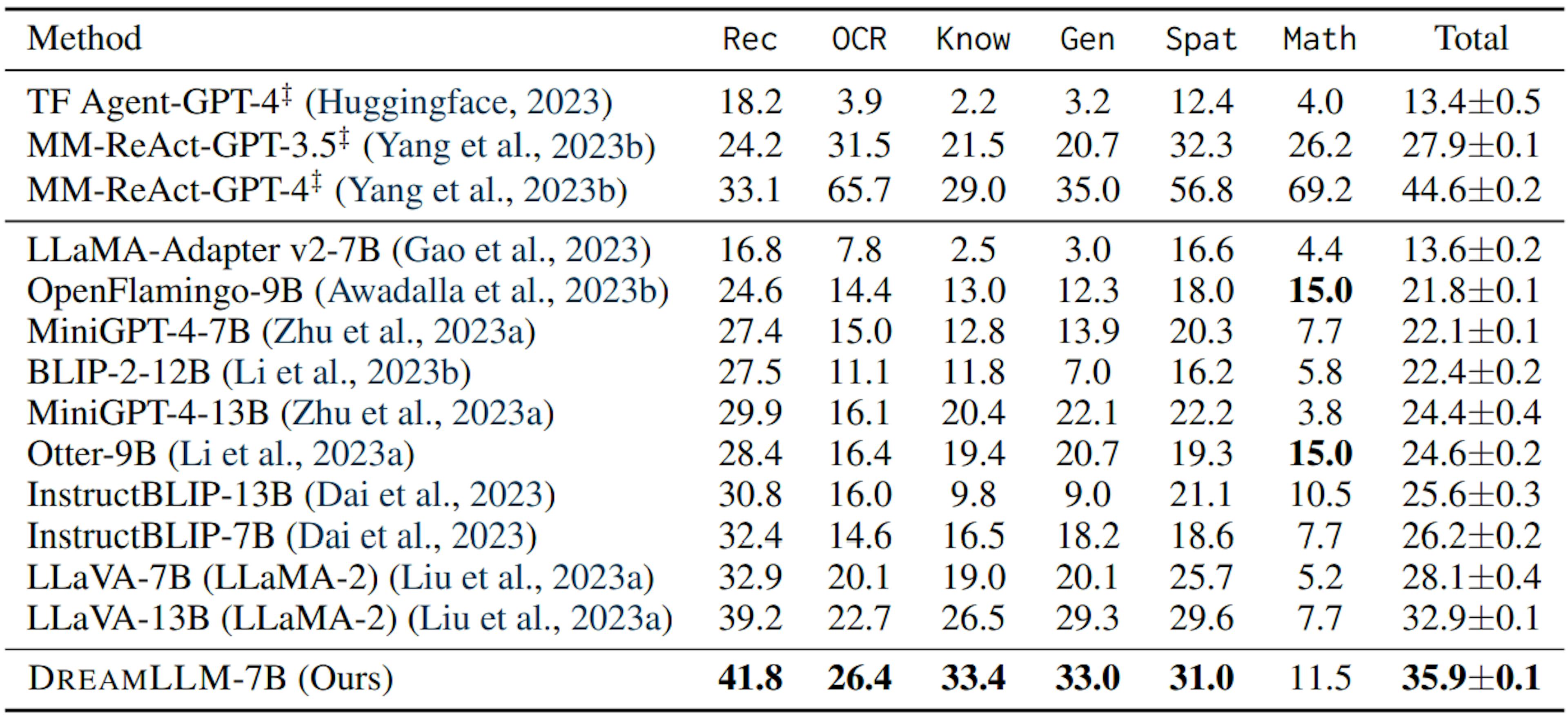

Detailed Comprehensive Comparison The evaluation results on MMBench (Liu et al., 2023c) and MM-Vet (Yu et al., 2023b) are presented in Table 5 and Table 6, respectively.

The key observations from these results are as follows: i) Our DREAMLLM-7B outperforms all other 7B MLLMs, setting a new benchmark in overall performance. Notably, it even exceeds the performance of some 13B models, including LLaVA and MiniGPT-4. ii) A detailed capability evaluation reveals DREAMLLM’s superior performance in fine-grained understanding and relational/spatial comprehension. This advantage is likely due to DREAMLLM’s unique learning synergy, where image distributions are comprehended not solely through language-posterior comprehension, but also through creation.

Visual Hallucination Visual hallucination, a phenomenon where Multimodal Large Language Models (MLLMs) generate non-existent objects or identities in images, significantly compromises their multimodal comprehension capabilities and may pose safety risks (MacLeod et al., 2017; Rohrbach et al., 2018). We assess the robustness of DREAMLLM against visual hallucination using the recently developed POPE benchmark (Li et al., 2023d).

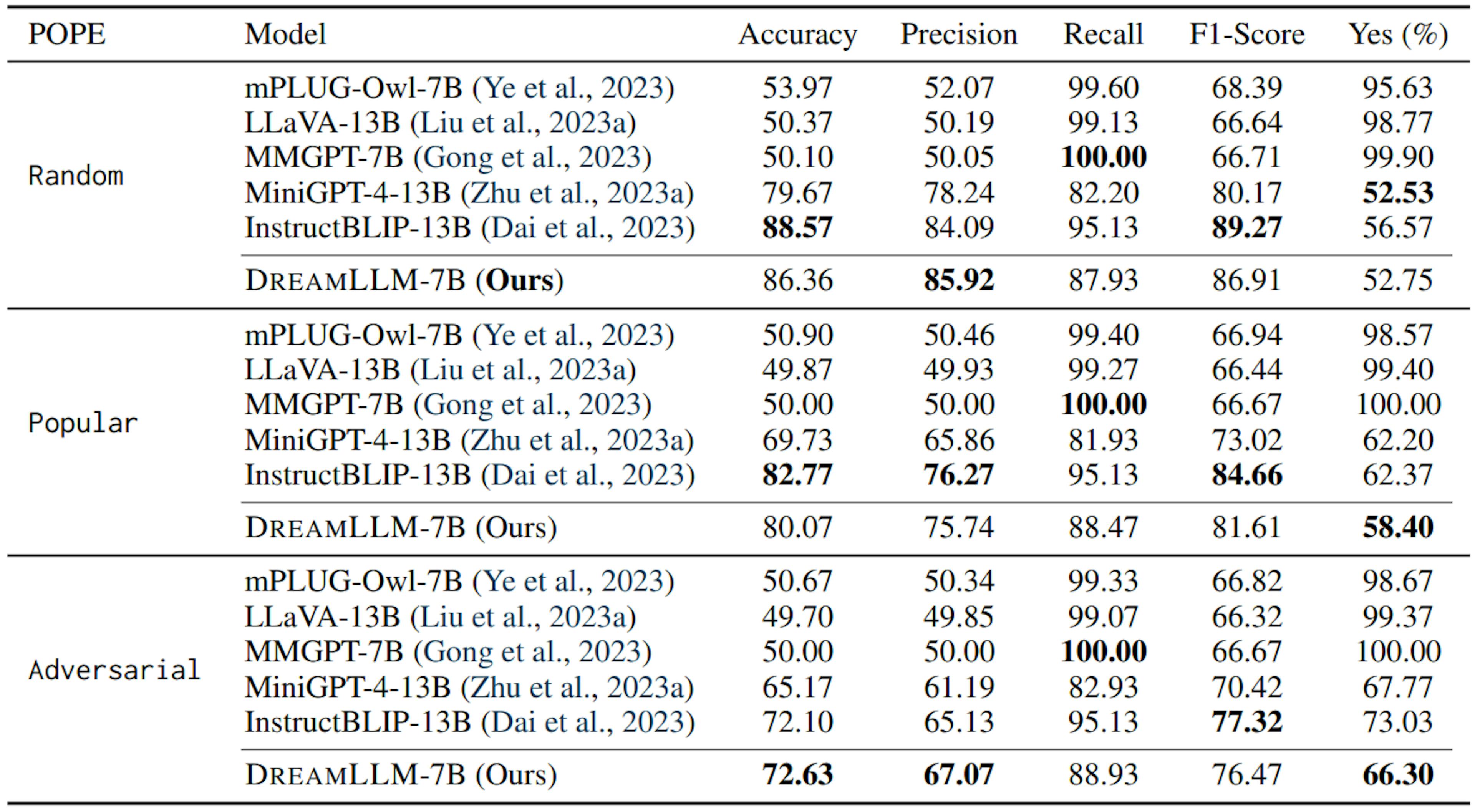

Refer to Table 7 for a detailed comparison with concurrent comprehension-only MLLMs. Our results indicate that DREAMLLM-7B exhibits robustness to visual hallucination, matching or surpassing the performance of 13B counterparts. Remarkably, DREAMLLM achieves most best or second-best performance in the most challenging setting. We posit that this robust anti-hallucination property stems from a deep understanding of object concepts and semantics, fostered by multimodal creation learning.

A.3 ADDITIONAL ABLATION STUDY

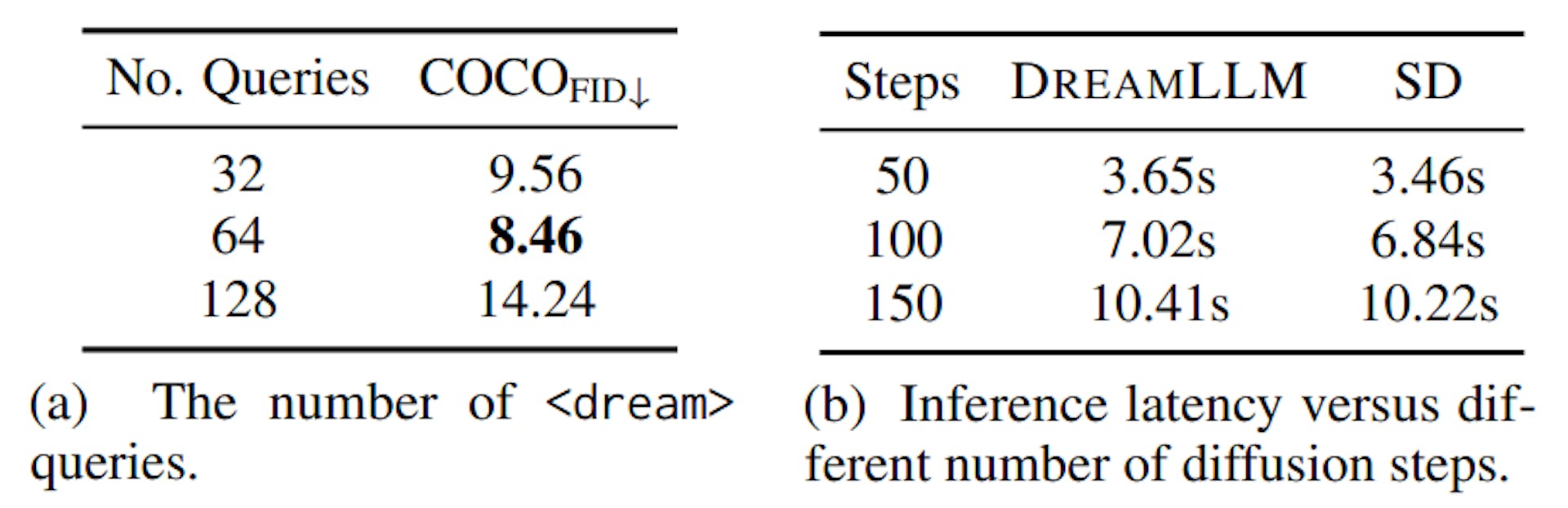

Query Number In Table 8a, we show the results of DREAMLLM using different numbers of the proposed learnable queries. i.e., queries. The results show that 64 queries achieve the best result, while 128 may be too many that may impact the performance. However, the choice of query number is also related to the training data size and diffusion model choice. For example, if given more data and a stronger diffusion model image decoder, queries more than 64 may be better.

A.4 INFERENCE LATENCY

In Table 8b, we present a comparison of real-time inference latency between DREAMLLM and SD. Relative to SD, DREAMLLM introduces a marginal latency cost of 0.2s on average. This is because the latency primarily stems from the computational demands of the diffusion U-Net denoising, rather than the text condition embedding.

To enhance inference efficiency, potential strategies could include the adoption of Consistency Models (Song et al., 2023), or the implementation of model compression techniques such as quantization (Yao et al., 2022; Dong et al., 2022; Shang et al., 2023).
